Introduction
Ordering the wrong-size screen door is one of the most common (and most avoidable) home headaches. The fix is simple: measure the opening correctly, record the smallest measurements, and double-check a couple of “hidden” fit factors like track depth and handle clearance.
If your screen door is technically the right size but still sticks, drags, or pops off track, it may be a roller/track issue. Check JDM’s Screen Door Repair service or Fort Lauderdale Screen Door Repair.
What You’ll Need
- Tape measure
- Pen + paper (or Notes app)
- Flashlight (helpful for seeing track edges)
- Small level (optional)
1) Identify What Type of Screen Door You’re Measuring
Screen doors come in a few common types, and measurements can differ slightly:
- Sliding screen door (patio-style, most common)
- Hinged/swing screen door (opens like a regular door)
- Retractable screen (rolls into a side housing)
If you’re not sure, look at the bottom: a sliding screen sits in a track and usually has adjustable rollers; a hinged screen has visible hinges.
2) Measure the Opening Width in 3 Spots

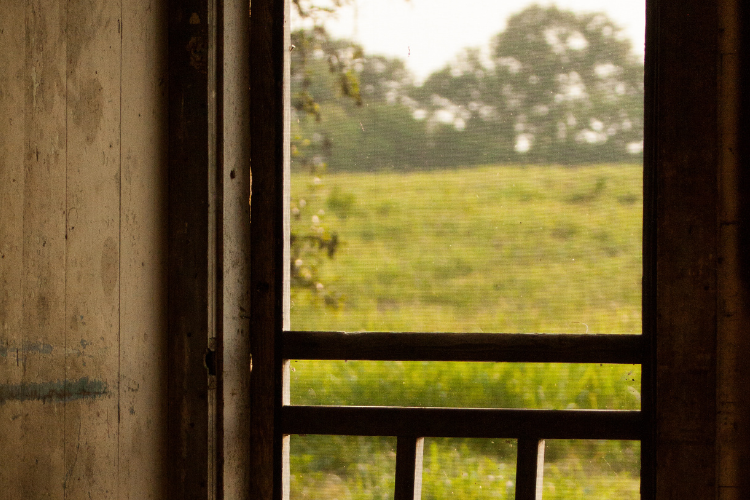

Measure the inside opening frame-to-frame at:
- Top
- Middle
- Bottom
Use the smallest width as your “true width.” Openings are often a little uneven — using the smallest measurement helps prevent binding.
Example: Top: 36 1/8” | Middle: 36” | Bottom: 35 15/16” | Use 35 15/16”
3) Measure the Opening Height in 3 Spots
Measure the inside opening height at:
- Left
- Center
- Right
Use the smallest height as your “true height.”
4) Check if the Opening Is Out of Square
This is the step most people skip — and it’s often why the new door “almost fits.”
Measure diagonals:
- Top-left to bottom-right
- Top-right to bottom-left
If these are different, the opening is out of square. That doesn’t mean you can’t install a screen door — it just means you should:
- Use the smallest width/height
- Expect minor adjustment (rollers for sliding doors, shims for hinged doors)
5) For Sliding Screens: Measure Track Depth
A sliding screen door needs enough track depth to sit securely and roll smoothly.
Measure:
- Top track depth
- Bottom track depth
If the track is full of grit or paint buildup, clean it first — debris can make the track seem shallower than it really is.
If your screen keeps popping out of the track, you may need a professional track repair to get things back in order.
6) Note Frame Thickness and Handle Clearance
Even if width and height are correct, two details can ruin the install:
Frame thickness: Some tracks only accept a certain frame thickness. Too thick means rubbing or binding.
Handle clearance: Check if the screen handle might hit:
- The sliding glass door handle or lock
- A security bar bracket
- Raised trim
A door can fit “on paper” but still be impractical if the handle collides.
7) Confirm What Size the Seller Wants
Before ordering, verify whether the supplier wants:
- Opening size (frame-to-frame), or
- Existing screen door size (measure the old door)
If your old screen door fit well before it broke, measuring the existing door is often the safest reference.
5 Common Measuring Mistakes (and How to Avoid Them)
- Measuring only once — measure 3 times
- Measuring the outside of the frame — measure the inside opening
- Rounding up — use the smallest numbers to avoid binding
- Ignoring track condition — bent or dirty tracks affect fit
- Skipping diagonal checks — out-of-square openings cause gaps and sticking
When It’s Smarter to Repair Instead of Replace
If your door is the right size but still drags or sticks, you may not need a full replacement. Many problems come down to:
- Worn rollers
- Track damage
- Misalignment
- Loose handle or latch

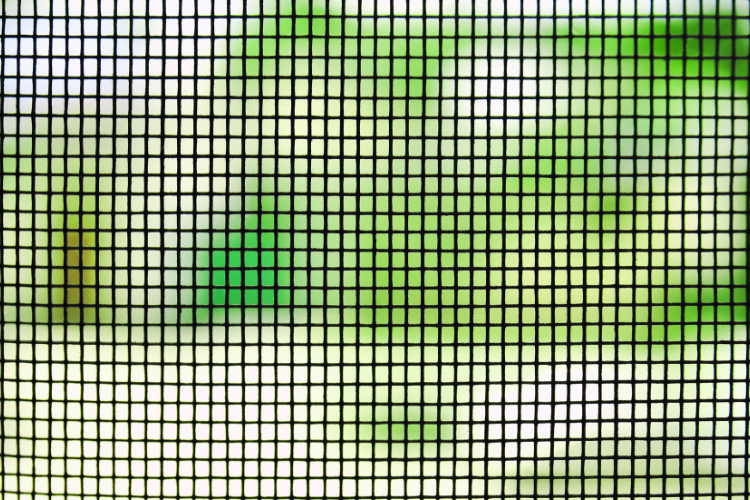

- Torn mesh
