The latch on your slider gives up, or it never felt solid to begin with, and now you are looking at pages of locks that all promise the same thing. None of them say whether the one in the picture fits the door in your living room. That is the actual problem. A patio door lock is not like a deadbolt you can buy for any front door, and buying the wrong one costs you a return trip and a weekend.
Short answer: there is no universal sliding door lock. Match the door first, then pick the lock.
- The lock built into the panel edge is a mortise lock, and a replacement has to match the old one’s faceplate, its screw spacing, and the hook it throws.
- A keyed handle set swaps the whole inside and outside handle, so the door locks from the patio as well.
- Add-on locks do not replace anything: a security bar, a foot bolt, or a pin through the frame each add a second stopping point.
- What it costs: most lock and handle jobs run $250 to $700 installed, and a multi-point system with several locking points runs $700 to $1,200.
Before you start: this guide is here to help you understand the hardware, not to hand you a repair job. Working on a lock means working on a heavy glass door, so the safe answer for most people is to have a licensed pro fit it.
Why this holds: our elite technician Yuval puts it in one line. “Each door takes its own lock. Some models are more common and more popular, but you cannot just put a popular lock on a door it was not made for, it will not work.”
I am Gal Cohen, field area manager at JDM Sliding Doors, and sliding door lock replacement has been part of our work across South Florida since 2012. Locks are the second most common call we take after rollers. By the end you will know how to tell whether your lock is even broken, which five locks are worth having and which door each fits, what to measure before you buy, what a replacement costs, and the rule Florida sets for a slider that opens onto a pool.
Key takeaways
- Sliding door locks are not universal. The part has to match your door, not the other way around.
- One in five lock calls needs no lock at all. The door dropped, so the latch misses the keeper.
- A security bar is a good second lock and a poor only lock, because it does nothing against a panel being lifted.
- Photograph and measure the old lock before you order. Faceplate length, screw spacing, and hook style are what decide the fit.
- If your slider opens to a pool, Florida law asks for an alarm or a self-closing device on that door.
First, check the lock is actually broken
Here is the part that saves people money. When a slider will not lock, the lock itself is often fine.
The panel has dropped a few millimeters on worn rollers, so the hook no longer lines up with the keeper in the jamb. Yuval sees it on about 10 to 20 percent of lock calls, and the fix is an adjustment, not a part.
You can check it in a second. Lift the handle slightly while you turn the lock. If it catches when you lift and misses when you do not, the door is low and the lock is healthy. Our post on a sliding door lock that will not catch walks through the adjustment, and the full list of causes covers the rest.
Buy a new lock without checking this and you will install it into the same misalignment, and it will miss too.

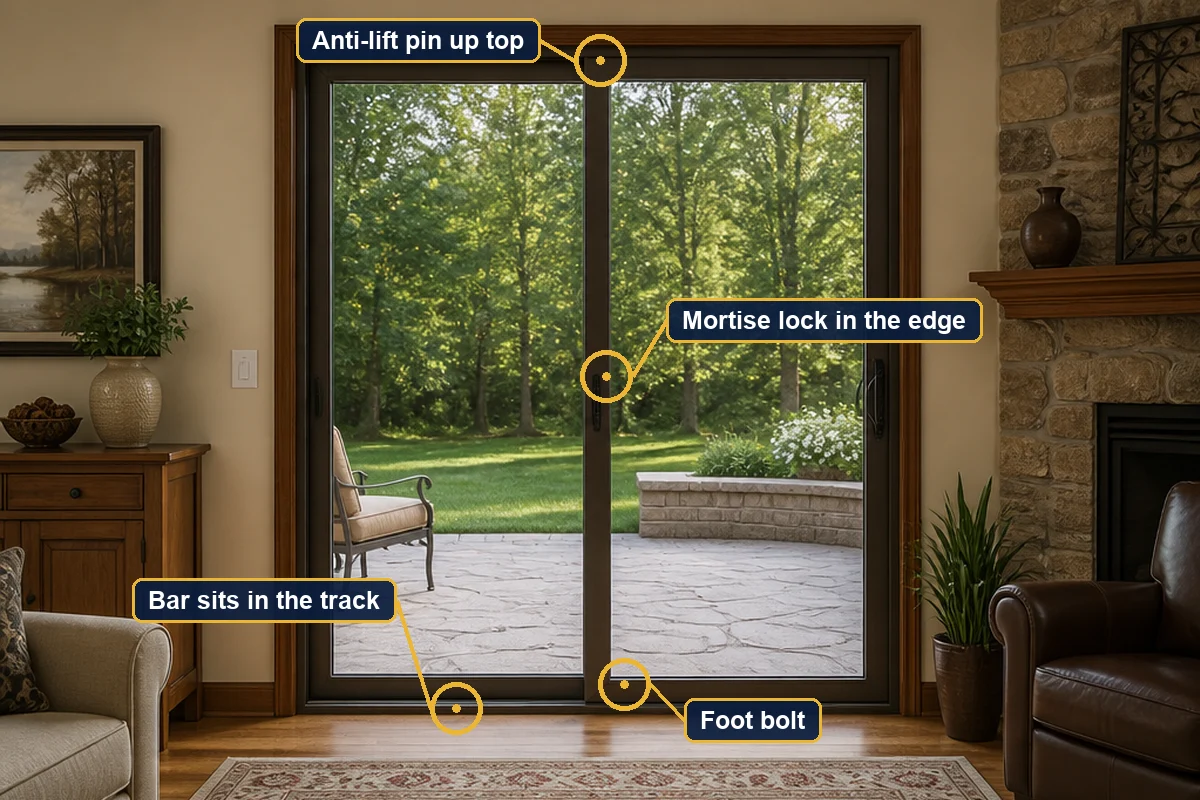

The five locks worth having, and which door each fits
1. A replacement mortise lock. This is the lock hiding inside the edge of the moving panel, and on most patio sliders it is the one that failed. It is the right fix when the handle feels loose or the hook will not throw. The catch is fitting: the new lock has to drop into the same pocket and line up with the same screw holes.

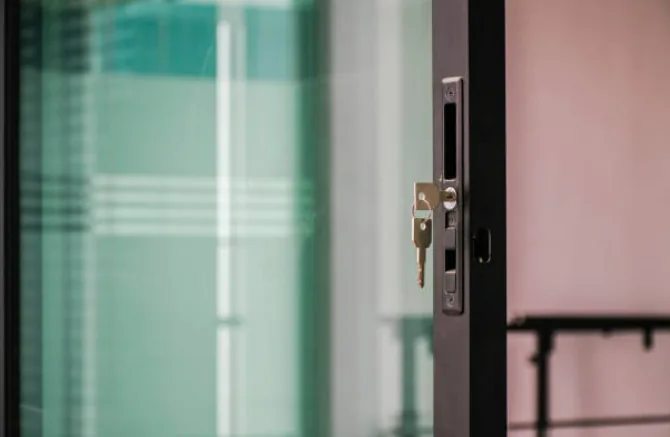

2. A keyed handle set. Same mortise body, different handles, with a key cylinder on the outside. Worth it on a door you use as a real entrance, and on rentals where somebody needs to get in from the patio. Not worth it on a door you only open from inside.
3. A foot bolt. A small bolt at the bottom of the panel that drops into the sill with a tap of your foot. It gives you a second locking point low on the door, where a pried panel flexes most, and it costs very little.
4. A pin lock or anti-lift device. A pin through the meeting stile, or a screw set into the upper track, stops the panel being lifted out of the frame. This is the one people forget, and it covers what a security bar cannot.
5. A security bar. The steel bar in the track. It is cheap, it needs no tools, and it stops the door sliding. It also does nothing if somebody lifts the panel, so treat it as a second lock rather than the plan.
Smart locks come up a lot, and the honest answer is that most of them are built for hinged doors. A few slider-specific models exist, but a smart lock still has to sit on a door that closes square, so fix the alignment first.
What to measure before you order a lock
Take the old lock out first, and take these four numbers with it. Silver Line’s patio door service guide shows the order on a typical door: the interior and exterior handles come off, then the lock lever, then the mortise body, and it warns you to hold onto the hook while the lock comes out so it does not drop down inside the panel.
- Faceplate length and width. The flat metal plate on the edge of the door, measured end to end.
- Screw hole spacing. Center to center between the two mounting screws.
- Handle hole spacing. Center to center between the holes the handle passes through.
- Hook style. One hook, two hooks, or a bolt. Photograph it from the side.
Write those on your phone next to a photo of the lock. Any brand stamp or part number pressed into the metal goes on the list too, because that number is what makes the match certain.
What sliding door lock replacement costs
These are our installed South Florida ranges, which include the visit, the part, and setting the door so the lock actually catches.
| The job | Typical installed range |
|---|---|
| Lock or handle replacement | $250 to $700 |
| Multi-point lock system | $700 to $1,200 |
| Add-on foot bolt, pin lock, or bar | Usually bundled with other work |
The part by itself is cheap, often under $60. What moves the number is finding the right one for a door that may be 20 years old, and whether the panel needs leveling once the lock is in. Our sliding door repair cost guide breaks down the rest of the price list.
Discontinued hardware is the one that surprises people. On older doors the exact lock is gone from the market, and the fix is a matched substitute rather than the original, which takes longer to source.

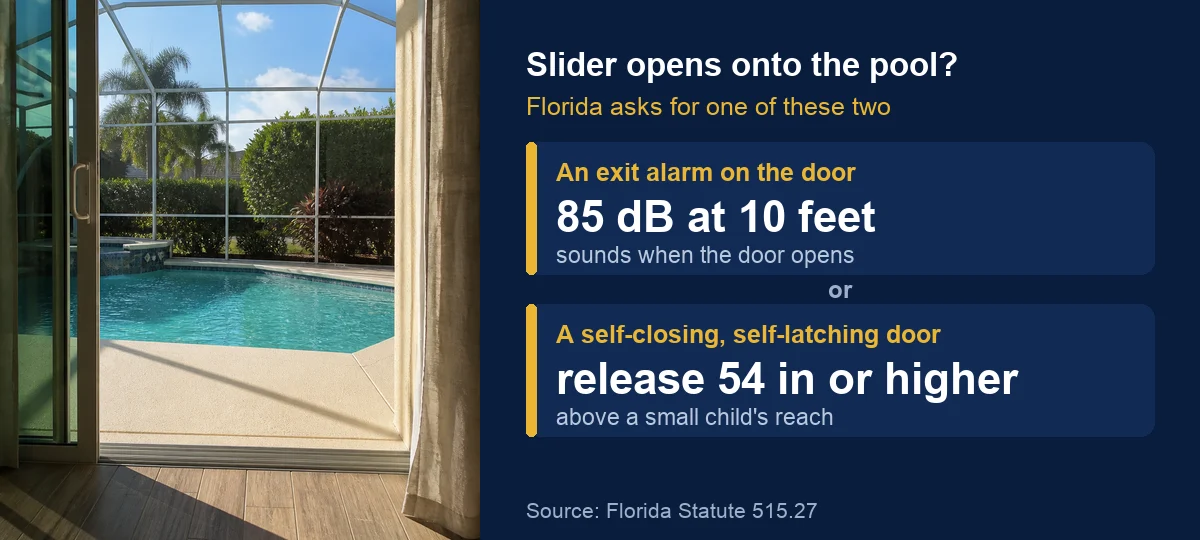

If your slider opens onto a pool, Florida sets the rule
This is the part almost no lock guide mentions, and in South Florida it decides which lock you can even use.
Under the Residential Swimming Pool Safety Act, Florida Statute 515.27 lists the safety features a home pool can use. Two of them land on your patio door. One option requires that “all doors and windows providing direct access from the home to the pool must be equipped with an exit alarm” with a minimum sound rating of 85 decibels at 10 feet. The other requires a self-closing, self-latching device with the release mechanism placed no lower than 54 inches above the floor.
Florida Statute 515.29 adds the reason a slider gets pulled into this at all: a wall of the house counts as part of the pool barrier only if it has no door or window opening onto the pool.
So a keyed lock at handle height satisfies nobody’s safety inspection on a pool door by itself. The alarm or the self-closing hardware is the piece that counts.
Four mistakes I see on lock jobs
- Buying by brand instead of by fit. The most popular lock on the shelf is still the wrong lock if your door was not built for it. Match the measurements, not the label.
- Drilling new holes in the panel. Once someone opens a fresh hole in the frame of an impact rated door to make a lock fit, the panel is compromised. Source the right part instead.
- Treating a bar as the whole plan. A bar stops the slide and nothing else. Pair it with a pin or an anti-lift screw so the panel cannot come up and out.
- Locking a door nobody leveled. A lock installed into a sagging door wears out fast, because the hook is fighting the keeper every time. Rollers first, lock second.
Frequently asked questions
Can a sliding door lock be keyed to match my house key?
Sometimes. It depends on whether the handle set takes a standard cylinder, so ask before you buy rather than after. A locksmith can tell you from a photo of the outside handle.
Can I add a keyed lock to a slider that never had one?
Usually yes, through a keyed handle set or a surface-mounted keyed lock. The panel has to have the room for it, which is why the measurements come before the purchase.
How long does a lock replacement take?
Most are under an hour once the correct part is in hand. Sourcing a discontinued lock is what stretches the job into a second visit.
Will a new lock fix a door that is hard to slide?
No. Sticking and dragging are roller or track problems, and a lock has nothing to do with them. Worn rollers are the usual cause.
Do I need to take the door out to change the lock?
Not usually. The mortise lock comes out through the edge of the panel with the door still hanging, though the handle set has to come off first.
Not sure which lock your door takes?
Send us a photo of the old one and we can usually name it. JDM Sliding Doors handles sliding door lock repair and replacement across South Florida, and most jobs are done in a single visit.
This post is general information, not instructions for your particular door. Hardware and glass differ from door to door, and working on a slider carries a real risk of injury and damage, so we recommend having the work done by a licensed professional.
