Short answer: a barn door hangs from two rollers on a rail, and almost all sliding barn door problems trace to one of four parts.
- It drags or catches: dirt on the rail, or a roller that has stopped spinning.
- It swings away from the wall as it moves: the floor guide is missing, loose, or the wrong width for the door.
- It lifts or jumps off the rail: the anti-jump hardware is missing or set too far from the rail.
- It rubs at one edge only: the panel has warped, or one hanger is set higher than the other.
How I know: the fix depends on which of those four it is, and you can tell which one you have by watching the door move, before you unbolt a single thing.
I am Gal Cohen, field area manager at JDM Sliding Doors. Barn door repair is a small part of what our techs do, but it is the one where people replace the whole set of hardware when a $15 part was the problem. Most of these are a twenty minute job.
By the end you will know how to tell which part is at fault, how to adjust barn door rollers, what the floor guide does and how to size it, why the door jumps the rail, and what to do with a panel that has warped.
Key takeaways
- A missing floor guide is the single most common thing we find, usually removed during a floor replacement and never refitted.
- The guide has to be slightly wider than the door is thick, or it either binds or lets the door wander.
- Anti-jump hardware sits very close to the rail. Set too far away, it does nothing.
- The rail should run about twice the width of the door, so the panel clears the opening completely.
- Clean and spray the rollers, never the rail. Anything sticky on the rail collects grit and makes the wheels skid.
First, watch how the door moves wrong
Stand to one side and slide the door slowly end to end. You are looking for which of four things it does, because each one points at a different part.
It drags or grinds. The wheels are not turning freely, or something on the rail is catching them.
It swings out from the wall. The bottom of the panel is loose. Skip straight to the floor guide section below.
It hops or lifts at one spot. The panel is coming up off the rail where it should be held down.
It rubs the frame at one corner only. Either the panel is no longer flat, or the two hangers are not at the same height.
Write down which one you have before you pick up a tool. Every section below assumes you know.
How to repair a barn door that drags or grinds
A barn door not sliding smoothly is usually the rail rather than the wheels, so start there. Dirt is far more common than a dead bearing.
Run a dry cloth along the top of the rail where the wheels ride. Dust, drywall grit and paint flecks build up there and the wheels have to climb over every one of them. Wipe it clean and try the door again.
If it still drags, spin each wheel with a finger. Sliding barn door rollers are sealed bearings, and they give you plenty of warning before they seize.
A wheel that grinds, wobbles or refuses to turn gets replaced, and you do both at once, because a new wheel next to a tired one takes more than its share of the weight. The same test decides it on a patio door, and our guide to worn sliding door rollers shows what a finished wheel looks like.
Spray the wheels, never the rail. Lubricant on the rail turns it into a magnet for dust, and it makes the wheels skid along instead of rolling. A dry lubricant on the bearing is what you want.
The barn door floor guide is what stops the door swinging
This is the part people take off and never put back, usually during a floor replacement.
Rustica, one of the larger barn door hardware makers, puts its job plainly: a floor guide “prevents the sliding door from swinging to keep it moving in a straight, smooth line”. Take it away and the bottom of the panel is holding onto nothing.
Size it to the door, not to the opening. Rustica’s instruction is that the guide “should be slightly wider than the thickness of the door”. Too tight and the door binds halfway. Too loose and it still wanders, which is why a guide that came with a different door often does not work.
Put it where the door is always touching it. It has to stay engaged with the panel both fully open and fully closed, and everywhere in between, so it goes near the opening on the side the door travels to.

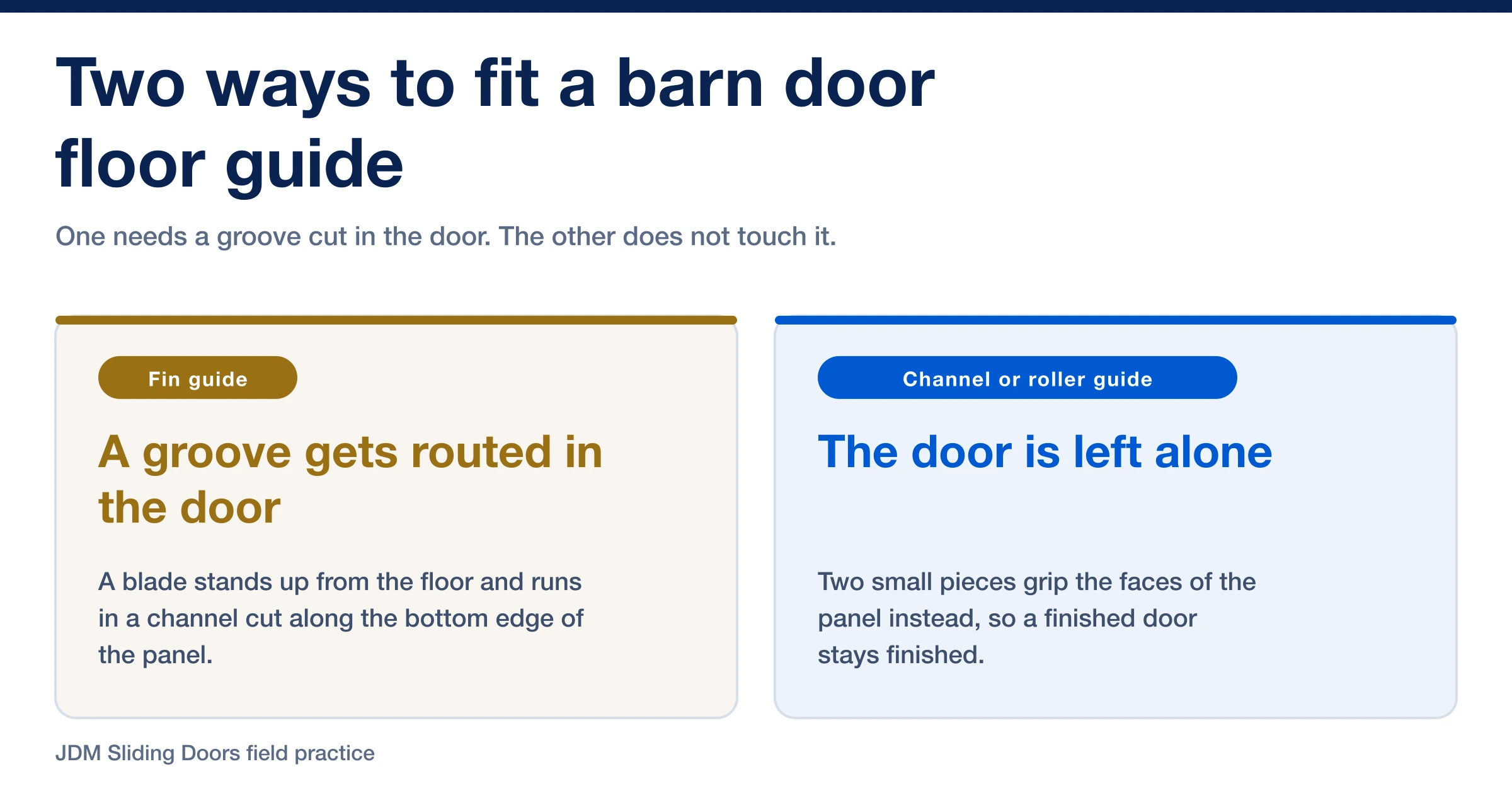

Which style you fit comes down to one question: are you willing to cut the door?
On a heavy panel, pick the roller version of the channel guide. The wheels carry the side load without scuffing a painted edge every time the door travels.
How to adjust barn door rollers
The hangers that hold the wheels usually bolt through the panel with a slot rather than a round hole, and that slot is your height adjustment.
Loosen the bolt on one hanger, move the panel up or down a little, and tighten it again. Work one side at a time and check the door against the frame after each move.
What you are aiming for is an even reveal: the space beside the door measuring the same at the top as at the bottom, and the panel hanging parallel to the wall. If the door rubs the floor at one corner, raise that side rather than both.
Why the door jumps the rail
A barn door is only sitting on its rail under its own weight, so something has to stop it lifting. That something is a set of small anti-jump brackets under the rail. A barn door anti jump disc does the same job in a round shape, and the kits use the names interchangeably.
The reason they get missed is that they are useless unless they are close. Rustica’s own fitting instructions put the bracket “between 1/8” and 1/16” from the bottom edge of the rail”. That is a hair of clearance. Set it a quarter inch away and the door can still hop right over the rail before the bracket ever touches it.
If your door lifts at one spot only, look at the rail there for a low mounting screw or a bracket that has shifted.
How to fix a warped barn door
A solid wood barn door can cup or twist, especially one with a bathroom on one side and a hallway on the other.
Check it with a straight edge across the face. If the panel is out by a small amount, you can often pull it flat by adjusting the hangers and letting the floor guide hold the bottom in line.
If it is badly twisted, no hardware adjustment holds it. That is a panel replacement, and our top barn doors roundup is a reasonable place to start looking, and it is worth sealing the replacement on all six faces so it does not take on moisture unevenly a second time.
4 things I check before replacing any barn door hardware
People order a whole new kit far more often than they need to. Here is what gets checked first.
- Is the rail long enough? Rustica’s installation guide calls for a rail “at least twice the width of your door”. A short rail means the panel never fully clears the opening, and it looks like a sliding fault.
- Are both hangers at the same height? Measure from the floor to the same point on each. A quarter inch difference is enough to make the door rub one corner.
- Is the floor guide still there? Look down. It is surprising how often the answer is no.
- Are the mounting lags in framing? A rail carrying a heavy door has to be bolted into studs or a header board, not into drywall anchors. A rail pulling away from the wall drops the door out of line with everything else.
Frequently asked questions
My barn door slides fine but bangs against the wall. What fixes that?
You are missing wall spacers, or the ones fitted are too short. Those are the small standoffs that hold the rail away from the wall, and they set how much room the door has behind it. A door with a handle on the back face needs more clearance than the standard spacer gives.
Can I fit a floor guide if the door has no groove in the bottom?
Yes. The fin style needs a routed groove, but channel and roller guides work against the faces of the panel instead, so nothing has to be cut. Pick one of those if you would rather not put a router near a finished door.
Why is there a barn door gap letting light and sound through?
Because a barn door hangs in front of the opening rather than inside it, so it never seals. That is how they are built.
Ordering the panel wider and taller than the opening reduces what gets through, but a room needing real quiet wants a door that closes into a frame. Our barn doors versus sliding doors comparison covers that trade in full.
Is a barn door heavy enough to need two people?
Usually yes for hanging, and not for adjusting. A solid panel commonly runs 70 to 100 pounds, which is awkward rather than impossible, and lifting it onto a rail above your head alone is how panels get dropped and frames get marked.
