Your sliding closet door has stopped sliding properly. Maybe it leans out at the bottom and scrapes the carpet. Maybe it jumps off its track whenever somebody pulls it hard, or it stops dead halfway across. What you want to know is whether this is a ten-minute job or a new set of doors.
Usually it is the ten-minute job. Sliding closet door repair comes down to three small parts. There is the guide, which is the little plastic block screwed to the floor between the two doors. There are the wheels, at the top or the bottom of each door. And there is the track those wheels run in. Two of the three cost a few dollars and go on with a screwdriver.
By the end you will know which of the two closet door systems you have, what each symptom points at, how to get the door hanging level again, what to clean the track with, and when the doors themselves need replacing.
I am Gal Cohen, field area manager at JDM Sliding Doors, a sliding door repair company working in six states. Closet doors are the job people apologize for calling about, and they are usually the fastest one on the schedule.
Key takeaways
- The plastic guide screwed to the floor between two sliding closet doors is sold for a specific door thickness. Take the old one off and match it rather than guessing at the store.
- A standard nylon-wheel closet door hanger is rated to carry 80 pounds. The ball-bearing version carries 150, which is why mirrored doors wear out their wheels first.
- Never oil a sliding closet door track. Andersen’s care guide says lubricant on a track makes the wheels slide instead of roll, and a wheel that slides wears a flat spot.
- A closet door track with a shallow dent can be tapped flat with a block of wood. One that is kinked, or pulled loose from the header above it, gets replaced.
Sliding closet door repair starts with which system you have
Short answer: look up before you touch anything. If the doors hang from a track screwed across the top of the opening, the fix is almost always the floor guide or the height adjustment on a hanger. It is rarely the track everybody blames.

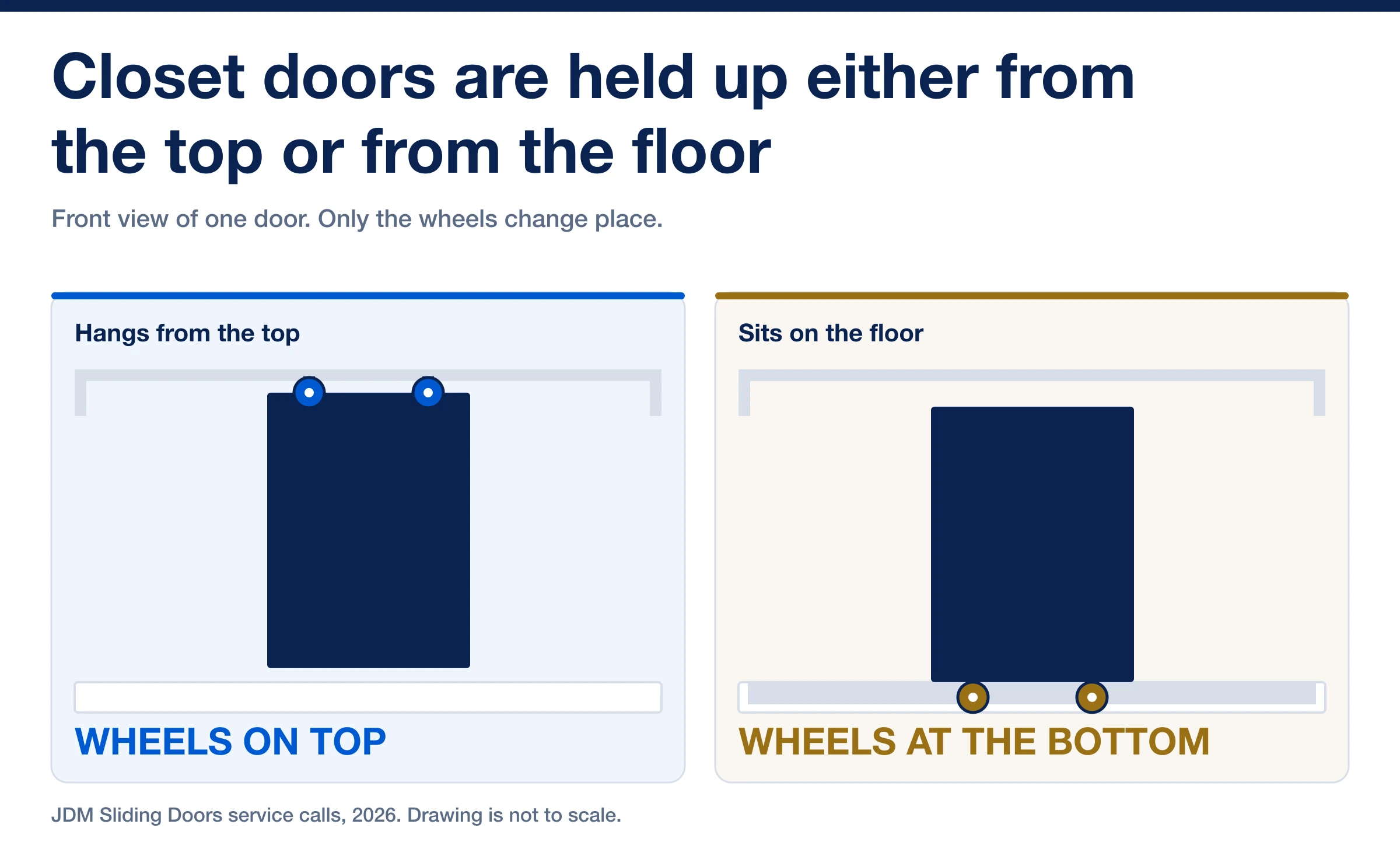

- Top-hung doors carry their whole weight on two small wheeled brackets, called hangers, running in an overhead track. Nothing holds them up at floor level.
- Bottom-rolling doors sit on wheels at their lower corners, in a channel on the floor. The track above them only keeps them from swinging.
- Two doors that pass each other in one opening are bypass closet doors, whichever way they are hung. That is the word printed on the hardware you will end up buying.
Where that comes from: the hardware maker’s own specifications. The Johnson Hardware 111SD bypass set is sold for residential and light commercial closets. It is top hung, rated to 150 pounds a door, and will hang a door as thin as 3/4 inch.
You can tell which kind you have in five seconds. Slide the door open and run your hand along the floor in the opening. Bare floor with one small block in the middle means the doors hang from the top. A long metal channel with wheels down in it means they are bottom-rolling. Then look up at the header, the beam across the top of the opening. A boxy metal rail screwed to it confirms a top-hung pair.
What each symptom points at
How to fix sliding closet doors depends on which of four things yours is doing. Each one points at a different part. Find yours here, then read the section that deals with it.
| What the door does | What is usually wrong | What it takes |
|---|---|---|
| Leans out at the bottom, or swings as you slide it | The floor guide is loose, worn or missing | Fit a new guide and two screws |
| Comes off the track when somebody pulls it hard | A wheel has worn, or a hanger is sitting too low | Fit a new pair of hangers or rollers |
| Drags on the floor at one end | The door is hanging out of level | Turn the height adjustment, one notch at a time |
| Sticks or stops halfway across | Grit, a dent in the track, or a loose screw head | Vacuum it out, then straighten or replace the track |
Start with the floor guide, because it causes most of this

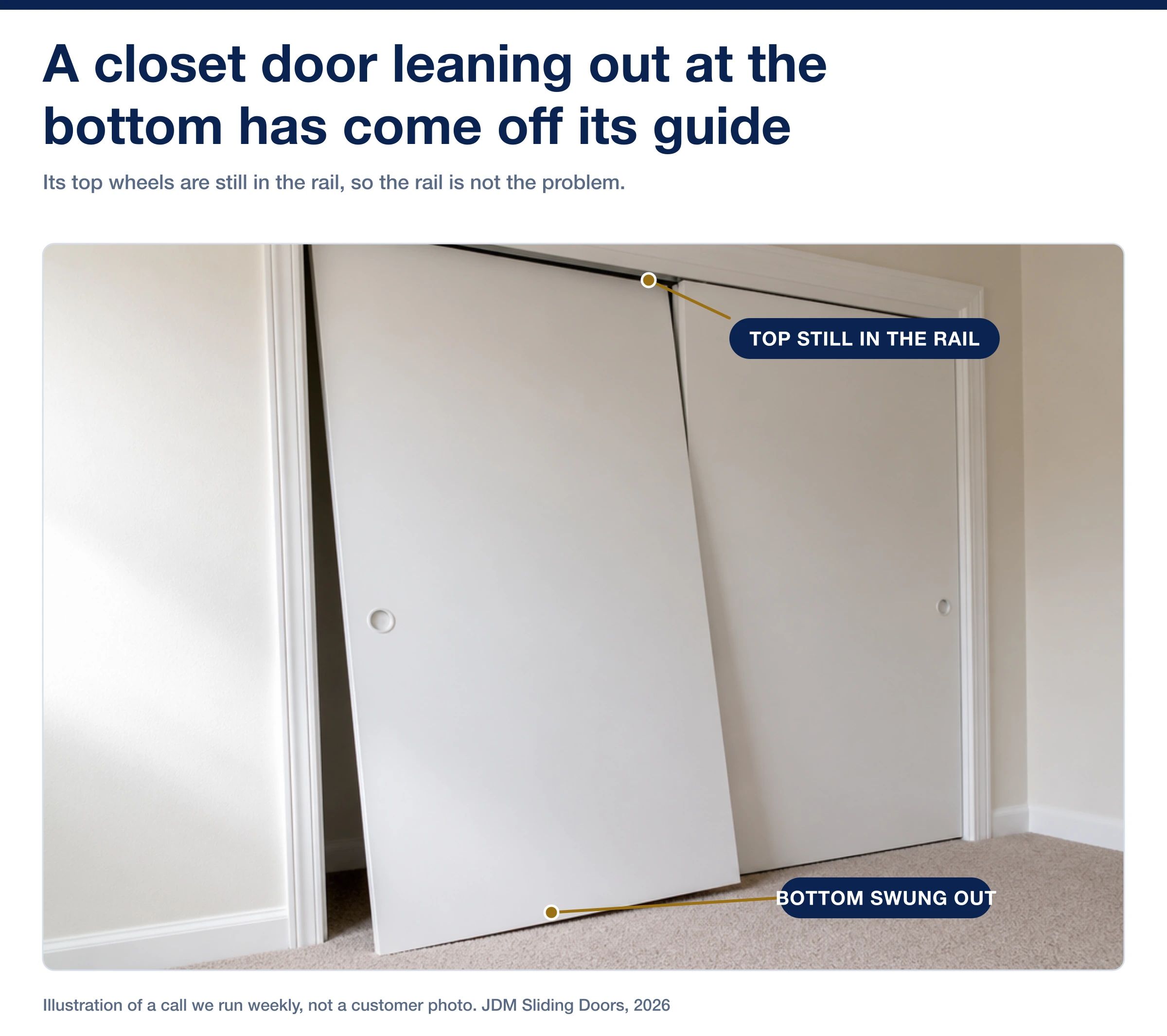

On a top-hung pair of doors, nothing at the floor carries any weight. The only thing down there is that guide. Its job is to hold the bottom of each door in its own lane as the two doors pass each other.
Lose it and the bottom of the door is free to swing. That is what makes one door catch on its neighbor, and what lifts its own wheels out of the rail above. Nearly every one of the sliding closet doors off track at the top that I get called to started as a guide problem at the floor.
Three things happen to guides, in the order I find them. The screws work loose in the floor. The nylon post wears thin enough that the door walks over it. The third one I see most in rentals: somebody unscrewed it to clean the carpet and never put it back.
Buy the replacement by taking the old one with you. Guides are sold for a specific door thickness. Johnson Hardware lists them in 3/4 inch, 1-1/8 inch, 1-3/8 inch and 1-3/4 inch versions, plus an adjustable post for heavy solid doors. If the old screw holes have gone soft, move the guide an inch along the floor and drill fresh ones. Filler in the old hole buys you about a month.
Then get the door hanging level
A door that drags at one end is not broken. It is out of adjustment, and both systems give you a way to put it back.
On a top-hung door the adjustment is on the hanger, which is the wheeled bracket screwed to the top edge of the door. Johnson’s closet hangers are height adjustable at that plate. You loosen it, lift that corner of the door, and tighten it again. On a bottom-rolling door the adjustment is a screw at the lower corner of the panel, usually hidden behind a small cap. It raises or lowers that corner on its wheel.
Then judge the result the way the manufacturer does, instead of by eye. Andersen’s care guide for its gliding doors says to close the panel to within about an inch of the side jamb. The jamb is the upright piece of frame the door shuts against. Now look down that edge. The space beside the door should be the same width from top to bottom. Move the adjustment one notch, look again, then move it again. A door that reads even down that edge stops coming off, because its wheels sit square in the rail.
Clean the track dry, and keep the oil out of it
Almost every page on this subject tells you to spray the track. Do not.
Andersen’s own gliding patio door care guide puts it in one line: “Do not use lubricants on the track itself; this will cause the rollers to slide, not roll.” A wheel that slides instead of rolling grinds a flat spot into itself. A flat-spotted wheel is a replacement rather than a clean.
That guide covers bottom-rolling patio doors. On closet doors I treat any wheel in a channel the same way. Vacuum the grit out, wipe the channel with a damp cloth, and let it dry. If anything gets lubricant it is the wheel itself, with a dry silicone spray, and never the channel it runs in.
Run a finger along the track while you are down there. A shallow dent presses flat again if you hold a block of wood in the channel and hammer the wood rather than the metal. A track that is kinked, or that has pulled away from the header, is a replacement. Hammering a stretched track only moves the bend somewhere else.
When the hardware is not what is wrong
Two things turn this from a repair into a replacement, and you can spot both from where you are standing.
The first is weight against rating. Johnson’s standard nylon-wheel hanger is rated to carry 80 pounds of door, and its ball-bearing hanger to 150. Mirrored doors are the heavy ones. Hang a pair of those on the light version and the wheels flatten every few years, however carefully anybody adjusts them. That calls for heavier hardware, not a third set of the same wheels.
The second is the door itself. A hollow panel coming apart at the bottom rail cannot be made to run straight. Neither can one that has warped out of flat, because no adjustment changes the shape of a door. A cracked mirror belongs in the same group. Tape over it, stop using that door, and plan on a new panel, because a mirror door that drops a piece is the one real injury risk in this job.
Short of those two, the hardware route is worth finishing. On the calls I run, a pair of hangers, a guide and even a new rail still come to less than one replacement door.
What we check on a closet door call
- Which system the doors are on, and whether the hardware up there is rated for the doors you actually own.
- Guides and hangers replaced in pairs, not one side, so both doors end up at the same height.
- Whether the rail is still straight, and still screwed into solid timber, which is what decides whether it can be reused.
- The other sliding doors in the house while we are in it. By the time a closet door complains, the patio slider is usually due new rollers too.
Our work carries 6 months on the parts we supply and 1 year on our own installation.
Frequently asked questions
Why does the door only come off when my kids open it?
Because of where they pull. A hand at the bottom corner levers the door sideways against the guide. A worn guide then lets the bottom swing out far enough that the top wheels tip out of the rail. An adult pulling the handle at waist height moves the door straight along instead. The door is telling you the guide is finished, not that the kids are too rough.
Are sliding closet door rollers the same as the ones in a patio door?
No, and they do not interchange. A patio slider is bottom-rolling, with steel wheels under a heavy panel. Closet hardware is mostly nylon wheels in a lighter overhead rail, and a hanger is made to fit one manufacturer’s rail. Match the part number stamped on the old hanger, or take it to the counter with you.
What about a single closet door instead of a pair?
That is different hardware. One door sliding across the face of the wall hangs from a wall-mounted rail, which is barn door hardware. Its problems are the floor guide at the bottom and the stops at each end. A door that disappears into the wall is a pocket door, and that one hangs from a rail inside the wall cavity.
Get the closet door sliding again
If the door has come off more than once, the hardware holding it up is the wrong hardware for the door. The same goes for mirrored doors that keep flattening their wheels.
JDM Sliding Doors handles sliding door repair on closet, pocket, barn and patio doors across South Florida and our other markets. Send us a photo of the top of the opening, and one of the floor between the two doors, and we will tell you what it needs. Schedule a free repair estimate.
